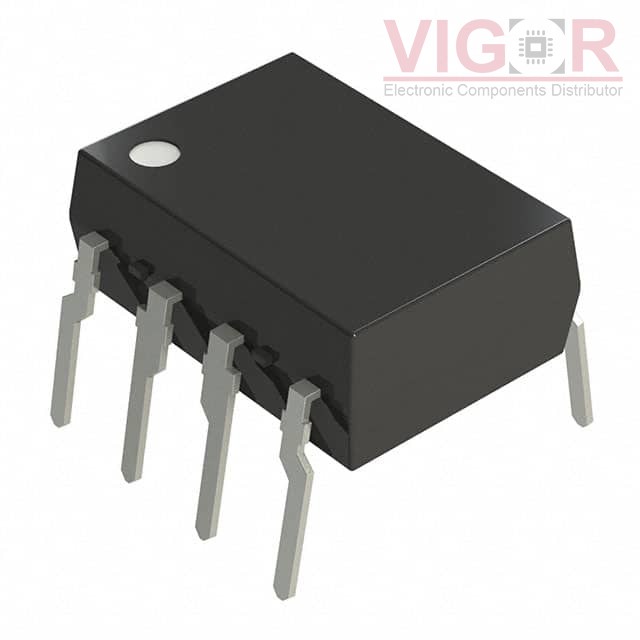

PS9505-AX

Product image
Product thumb
Part No :

PS9505-AX

Manufacturer
Renesas Electronics America
VIGOR # :

4087957

Description
OPTOISO 5KV 1CH GATE DRIVER 8DIP
Catalog
Isolators - Gate Drivers
DataSheet
PS9505-AX PDF
Country of origin
-
Date code
-
ads
PS9505-AX Specifications
Type Description
Series:-
Package:Strip
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):25kV/µs
Propagation Delay tpLH / tpHL (Max):250ns, 250ns
Pulse Width Distortion (Max):100ns
Rise / Fall Time (Typ):50ns, 50ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.56V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:-
Operating Temperature:-40°C ~ 110°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
Approval Agency:CSA, SEMKO, UL
