HCNW3120-000E

Part No :: HCNW3120-000E

Manufacturer: Broadcom

VIGOR # :: 4088249

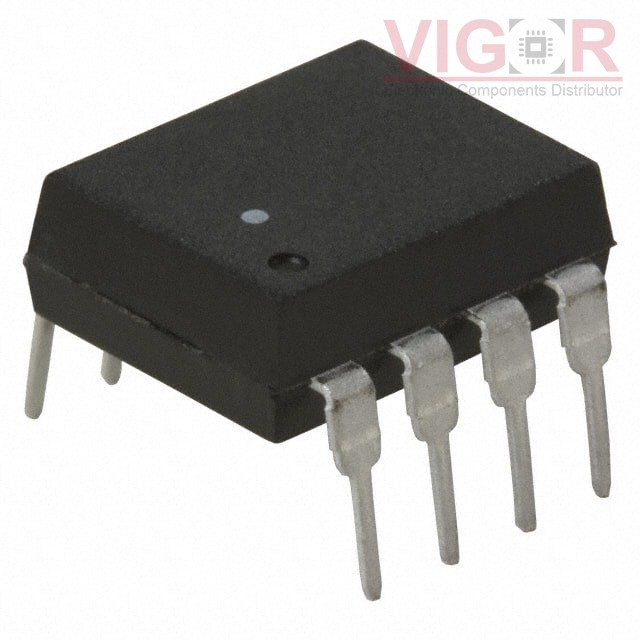

Description: OPTOISO 5KV 1CH GATE DRIVER 8DIP

Catalog: Isolators - Gate Drivers

DataSheet: HCNW3120-000E PDF

Country of origin: -

Date code: -

HCNW3120-000E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	25kV/µs
Propagation Delay tpLH / tpHL (Max):	500ns, 500ns
Pulse Width Distortion (Max):	300ns
Rise / Fall Time (Typ):	100ns, 100ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.6V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.400", 10.16mm)
Supplier Device Package:	8-DIP
Approval Agency:	CSA, IEC/EN/DIN, UR
