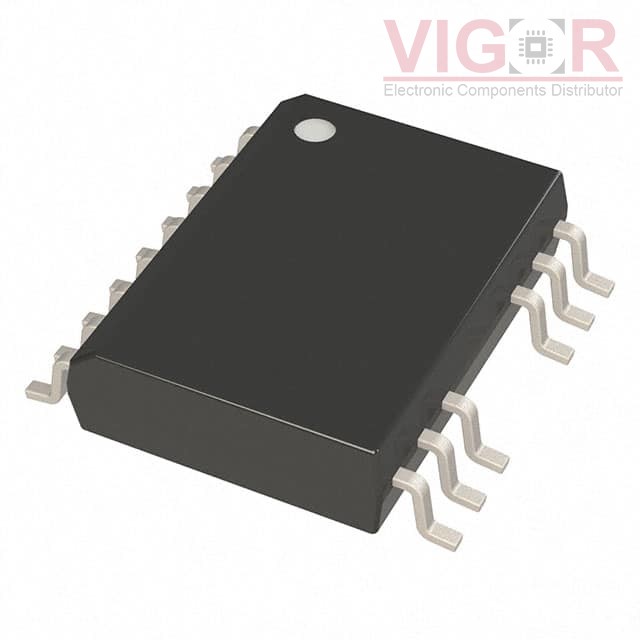

UCC21320QDWKQ1

Part No :: UCC21320QDWKQ1

Manufacturer: Texas Instruments

VIGOR # :: 4088720

Description: 4A/6A 3KVRMS DUAL CH ISO DR 8V U

Catalog: Isolators - Gate Drivers

DataSheet: UCC21320QDWKQ1 PDF

Country of origin: -

Date code: -

UCC21320QDWKQ1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tube
Part Status:	Active
Technology:	Capacitive Coupling
Number of Channels:	2
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	100V/ns
Propagation Delay tpLH / tpHL (Max):	30ns, 30ns
Pulse Width Distortion (Max):	6ns
Rise / Fall Time (Typ):	6ns, 7ns
Current - Output High, Low:	4A, 6A
Current - Peak Output:	4A, 6A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	9.2V ~ 25V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	14-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	14-SOIC
Approval Agency:	CQC, UL, VDE
