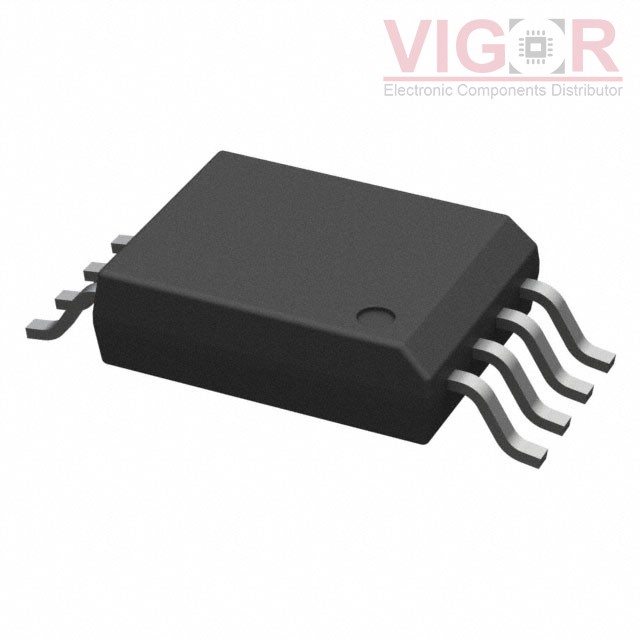

UCC5320SCDWV

Part No :: UCC5320SCDWV

Manufacturer: Texas Instruments

VIGOR # :: 4088768

Description: PWR MGMT MOSFET/PWR DRIVER

Catalog: Isolators - Gate Drivers

DataSheet: UCC5320SCDWV PDF

Country of origin: -

Date code: -

UCC5320SCDWV Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Technology:	Capacitive Coupling
Number of Channels:	1
Voltage - Isolation:	3000Vrms
Common Mode Transient Immunity (Min):	100kV/µs
Propagation Delay tpLH / tpHL (Max):	72ns, 75ns
Pulse Width Distortion (Max):	20ns
Rise / Fall Time (Typ):	12ns, 10ns
Current - Output High, Low:	2.4A, 2.2A
Current - Peak Output:	4.3A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	13.2V ~ 33V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	8-SOIC
Approval Agency:	CQC, UR, VDE
