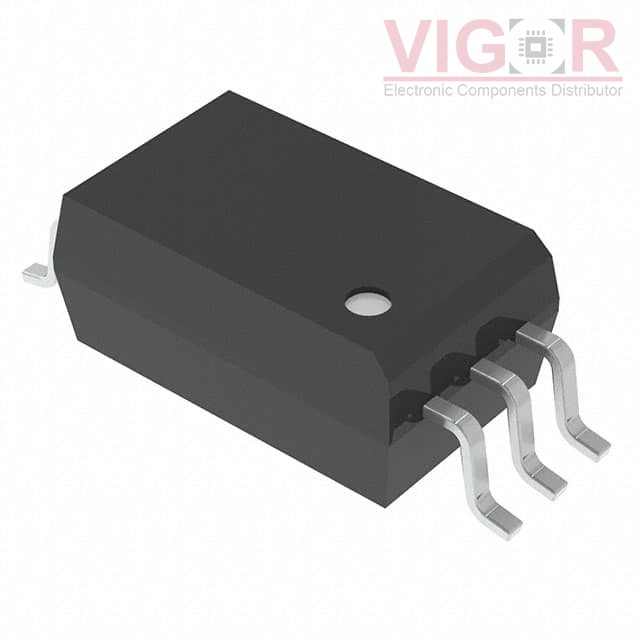

UCC23313BDWYR

Part No :: UCC23313BDWYR

Manufacturer: Texas Instruments

VIGOR # :: 4088794

Description: 4-A, 3.75-KVRMS OPTO-COMPATIBLE

Catalog: Isolators - Gate Drivers

DataSheet: UCC23313BDWYR PDF

Country of origin: -

Date code: -

UCC23313BDWYR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	150kV/µs
Propagation Delay tpLH / tpHL (Max):	105ns, 105ns
Pulse Width Distortion (Max):	35ns
Rise / Fall Time (Typ):	28ns, 25ns (Max)
Current - Output High, Low:	4.5A, 5.3A
Current - Peak Output:	4.5A, 5.3A
Voltage - Forward (Vf) (Typ):	2.1V
Current - DC Forward (If) (Max):	16 mA
Voltage - Output Supply:	14V ~ 33V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SOIC
Approval Agency:	CQC, UL, VDE
