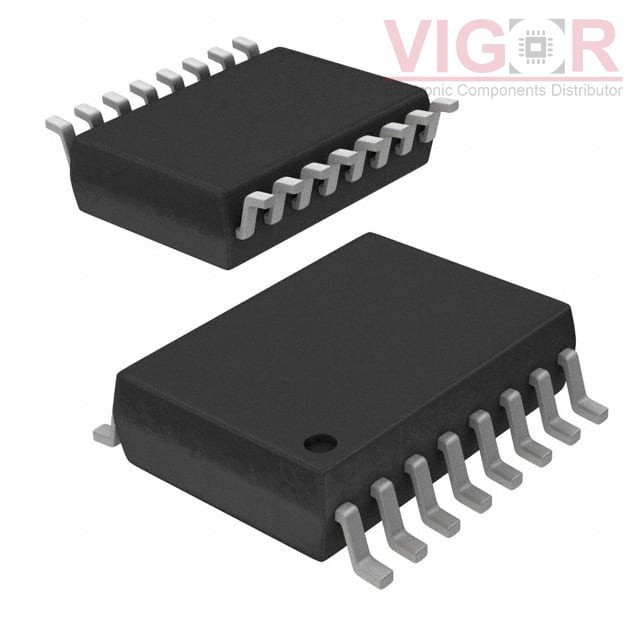

FOD8334R2

Part No :: FOD8334R2

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: INPUT LED DRIVE 3.0A GATE DRIVER

Catalog: Isolators - Gate Drivers

DataSheet: FOD8334R2 PDF

Availability: 0 pieces

Current price of FOD8334R2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FOD8334R2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	4243Vrms
Common Mode Transient Immunity (Min):	35kV/µs
Propagation Delay tpLH / tpHL (Max):	250ns, 250ns
Pulse Width Distortion (Max):	100ns
Rise / Fall Time (Typ):	50ns, 50ns
Current - Output High, Low:	3A, 3A
Current - Peak Output:	4A
Voltage - Forward (Vf) (Typ):	1.45V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	3V ~ 15V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SO
Approval Agency:	UL

Please confirm the specifications of the products when ordering.
