UCC23513BDWYR

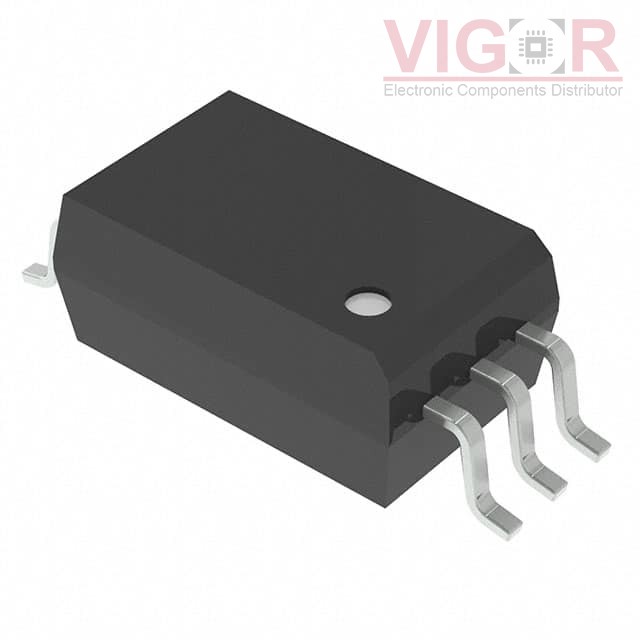

Product image
Product thumb
Part No :

UCC23513BDWYR

Manufacturer
Texas Instruments
VIGOR # :

4088952

Description
4-A/5-A, 5.7-KVRMS SINGLE-CHANNE
Catalog
Isolators - Gate Drivers
DataSheet
UCC23513BDWYR PDF
Country of origin
-
Date code
-
ads
UCC23513BDWYR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5700Vrms
Common Mode Transient Immunity (Min):150kV/µs
Propagation Delay tpLH / tpHL (Max):105ns, 105ns
Pulse Width Distortion (Max):35ns
Rise / Fall Time (Typ):28ns, 25ns (Max)
Current - Output High, Low:4.5A, 5.3A
Current - Peak Output:4.5A, 5.3A
Voltage - Forward (Vf) (Typ):2.1V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:10V ~ 33V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:6-SOIC
Approval Agency:CQC, UL, VDE
