HCPL-3180-360

Part No :: HCPL-3180-360

Manufacturer: Broadcom

VIGOR # :: 4982135

Description: OPTOISO 3.75KV GATE DRVR 8DIP GW

Catalog: Isolators - Gate Drivers

DataSheet: HCPL-3180-360 PDF

Country of origin: -

Date code: -

HCPL-3180-360 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Discontinued at Digi-Key
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	10kV/µs
Propagation Delay tpLH / tpHL (Max):	200ns, 200ns
Pulse Width Distortion (Max):	65ns
Rise / Fall Time (Typ):	25ns, 25ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	10V ~ 20V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-DIP Gull Wing
Approval Agency:	CSA, IEC/EN/DIN, UR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 06 - Oct 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of HCPL-3180-360 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

SI8261BCD-C-IM

DGTL ISO 5KV 1CH GATE DRVR 8LGA

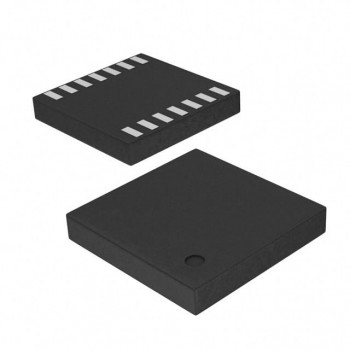

SI8235BB-C-IM
