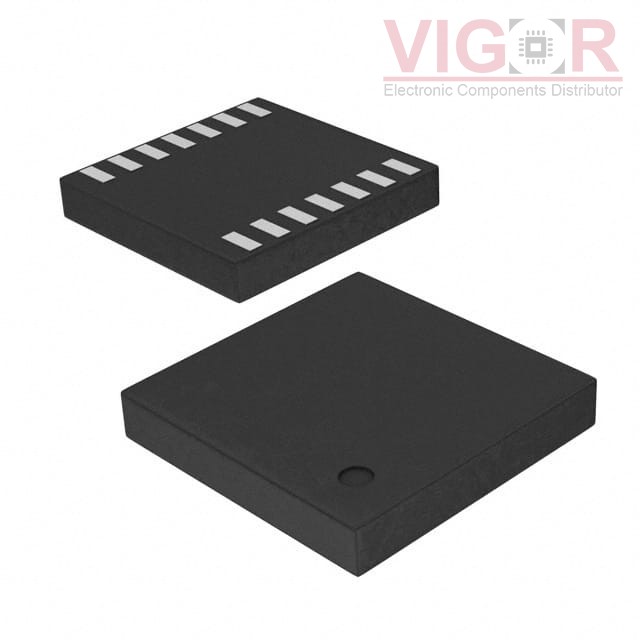

SI8236BA-C-IM

Part No :: SI8236BA-C-IM

Manufacturer: Silicon Labs

VIGOR # :: 4982205

Description: DGTL ISO 1KV 2CH GATE DRVR 14LGA

Catalog: Isolators - Gate Drivers

DataSheet: SI8236BA-C-IM PDF

Country of origin: -

Date code: -

SI8236BA-C-IM Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tube
Part Status:	Obsolete
Technology:	Capacitive Coupling
Number of Channels:	2
Voltage - Isolation:	1000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Propagation Delay tpLH / tpHL (Max):	60ns, 60ns
Pulse Width Distortion (Max):	5.6ns
Rise / Fall Time (Typ):	12ns, 12ns (Max)
Current - Output High, Low:	2A, 4A
Current - Peak Output:	4A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	9.4V ~ 24V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	14-VFLGA
Supplier Device Package:	14-LGA (5x5)
Approval Agency:	CQC, CSA, UR, VDE
