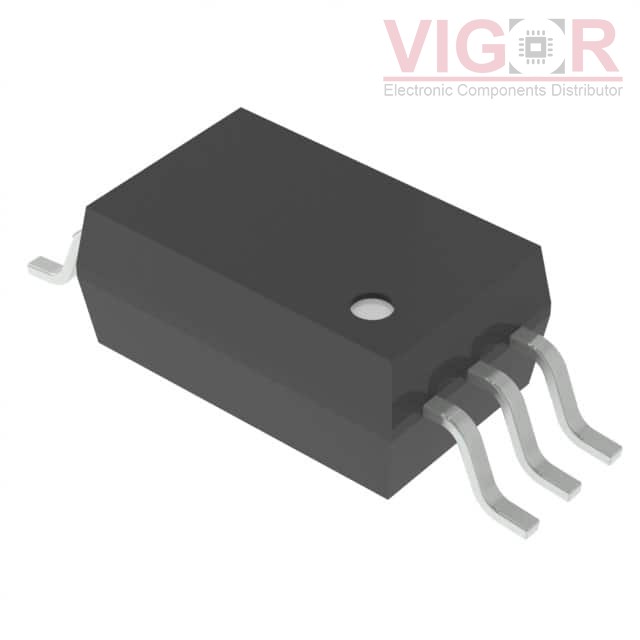

TLP2766A(TP4,E

Part No :: TLP2766A(TP4,E

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4080862

Description: COUPLER HIGH SPEED LOGIC OUTPUT

Catalog: Optoisolators - Logic Output

DataSheet: TLP2766A(TP4,E PDF

Country of origin: -

Date code: -

TLP2766A(TP4,E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	10 mA
Data Rate:	20MBd
Propagation Delay tpLH / tpHL (Max):	55ns, 55ns
Rise / Fall Time (Typ):	5ns, 4ns
Voltage - Forward (Vf) (Typ):	1.8V (Max)
Current - DC Forward (If) (Max):	25mA
Voltage - Supply:	2.7V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SO
