HCPL-6230

Part No :: HCPL-6230

Manufacturer: Broadcom

VIGOR # :: 4081021

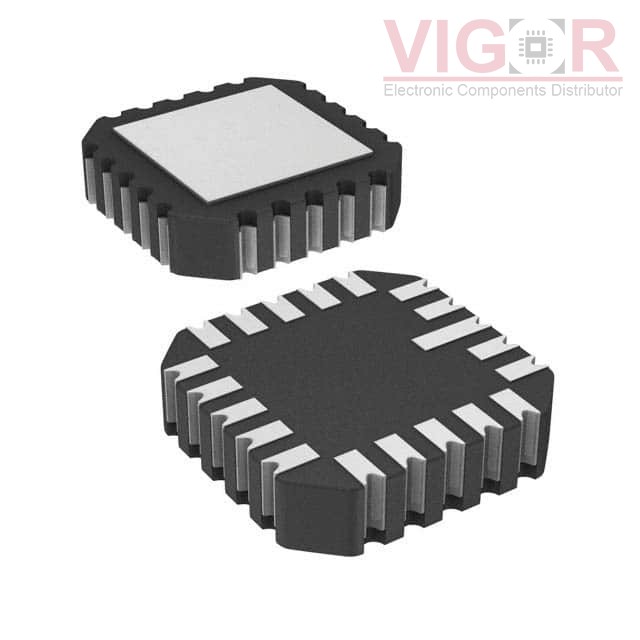

Description: OPTOISO 1.5KV PUSH PULL 20LCCC

Catalog: Optoisolators - Logic Output

DataSheet: HCPL-6230 PDF

Country of origin: Confirming

Date code: TBC

HCPL-6230 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	1500VDC
Common Mode Transient Immunity (Min):	1kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	15 mA
Data Rate:	5MBd
Propagation Delay tpLH / tpHL (Max):	350ns, 350ns
Rise / Fall Time (Typ):	45ns, 10ns
Voltage - Forward (Vf) (Typ):	1.3V
Current - DC Forward (If) (Max):	8mA
Voltage - Supply:	4.5V ~ 20V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	20-CLCC
Supplier Device Package:	20-LCCC (8.89x8.89)
