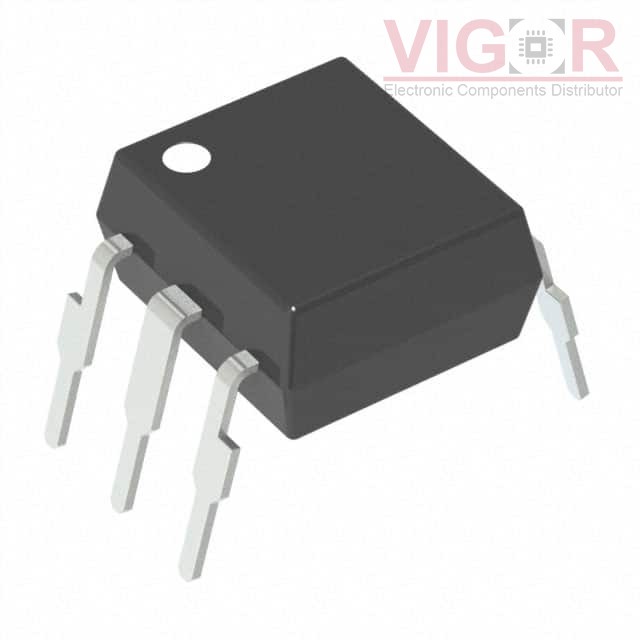

H11L1M

Part No :: H11L1M

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4081058

Description: OPTOISO 4.17KV OPN COLL 6DIP

Catalog: Optoisolators - Logic Output

DataSheet: H11L1M PDF

Country of origin: -

Date code: -

H11L1M Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	4170Vrms
Common Mode Transient Immunity (Min):	-
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	50 mA
Data Rate:	1MHz
Propagation Delay tpLH / tpHL (Max):	4µs, 4µs
Rise / Fall Time (Typ):	100ns, 100ns
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	30mA
Voltage - Supply:	3V ~ 15V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1731

Shipped from

HK warehouse

Expected Shipping Date

May 18 - May 22 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.9800~~	~~$0.98~~
10	~~$0.7588~~	~~$7.59~~
100	~~$0.5419~~	~~$54.19~~
500	~~$0.4119~~	~~$205.94~~
1000	~~$0.3252~~	~~$325.17~~

Current price of H11L1M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
