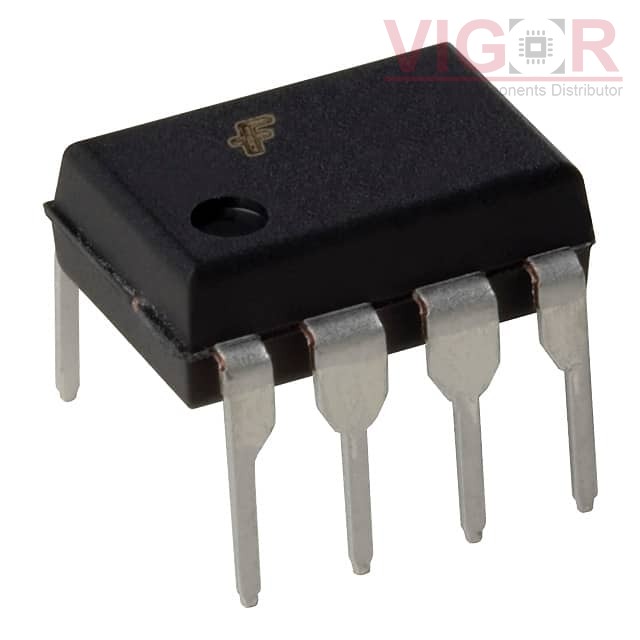

HCPL2630M

Part No :: HCPL2630M

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4081124

Description: OPTOISO 5KV 2CH OPEN COLL 8DIP

Catalog: Optoisolators - Logic Output

DataSheet: HCPL2630M PDF

Country of origin: Confirming

Date code: TBC

HCPL2630M Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	10kV/µs (Typ)
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	50 mA
Data Rate:	10Mbps
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	30ns, 10ns
Voltage - Forward (Vf) (Typ):	1.45V
Current - DC Forward (If) (Max):	30mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
