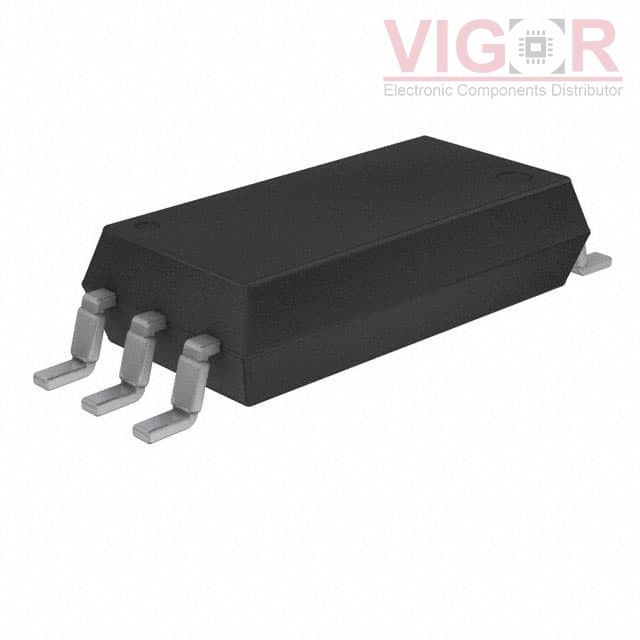

TLP2770(E

Part No :: TLP2770(E

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOISO 5KV TRI-STATE S06L

Catalog: Optoisolators - Logic Output

DataSheet: TLP2770(E PDF

Availability: 0 pieces

Unit Price: ~~$1.18016~~

Current price of TLP2770(E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLP2770(E Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	10 mA
Data Rate:	20MBd
Propagation Delay tpLH / tpHL (Max):	60ns, 60ns
Rise / Fall Time (Typ):	1.3ns, 1ns
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	8mA
Voltage - Supply:	2.7V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SO
