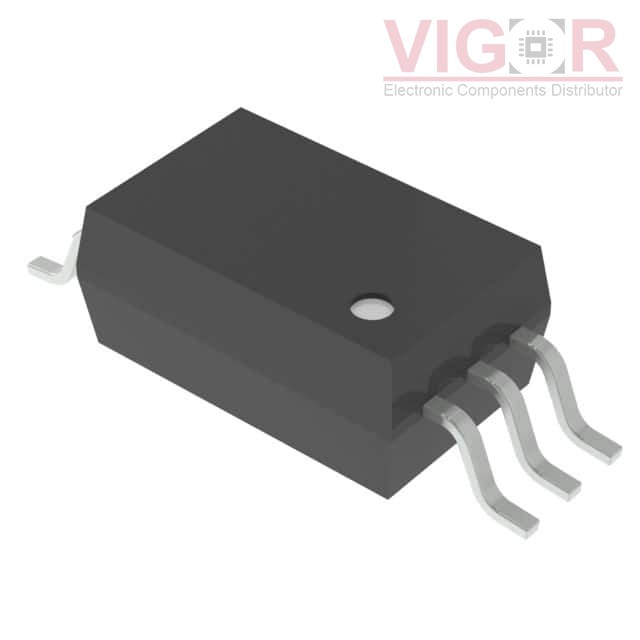

TLP5701(E

Part No :: TLP5701(E

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4081361

Description: X36 PB-F DRIVER COUPLER 0.6A SO6

Catalog: Optoisolators - Logic Output

DataSheet: TLP5701(E PDF

Country of origin: -

Date code: -

TLP5701(E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	600 mA
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	500ns, 500ns
Rise / Fall Time (Typ):	50ns, 50ns
Voltage - Forward (Vf) (Typ):	1.57V
Current - DC Forward (If) (Max):	25mA
Voltage - Supply:	10V ~ 30V
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SO
