HCNW2601

Part No :: HCNW2601

Manufacturer: Broadcom

VIGOR # :: 4081820

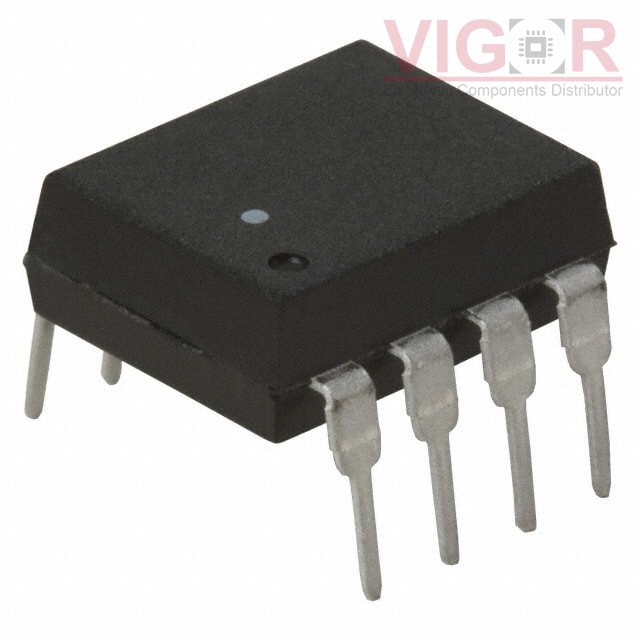

Description: OPTOISO 5KV OPEN COLLECTOR 8DIP

Catalog: Optoisolators - Logic Output

DataSheet: HCNW2601 PDF

Country of origin: -

Date code: -

HCNW2601 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	10kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	50 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	100ns, 100ns
Rise / Fall Time (Typ):	24ns, 10ns
Voltage - Forward (Vf) (Typ):	1.64V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.400", 10.16mm)
Supplier Device Package:	8-DIP
