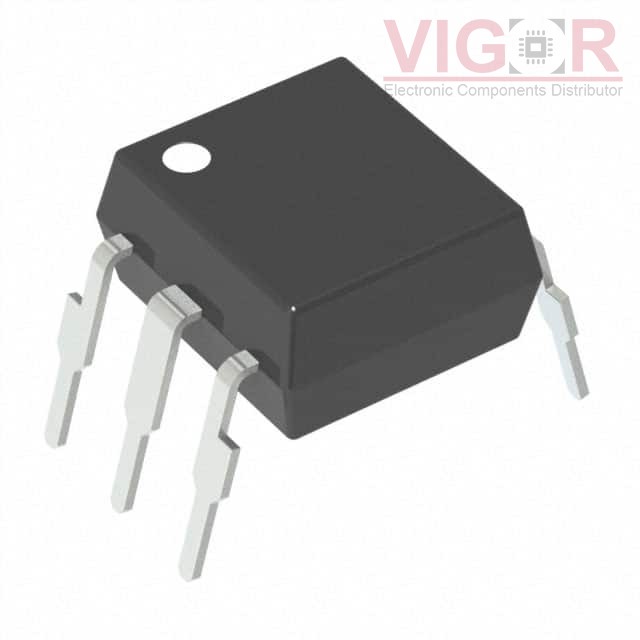

H11L3M

Part No :: H11L3M

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: OPTOISO 4.17KV OPN COLL 6DIP

Catalog: Optoisolators - Logic Output

DataSheet: H11L3M PDF

Availability: 1484 pieces

Unit Price: ~~$1.13000~~

Current price of H11L3M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H11L3M Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	4170Vrms
Common Mode Transient Immunity (Min):	-
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	50 mA
Data Rate:	1MHz
Propagation Delay tpLH / tpHL (Max):	4µs, 4µs
Rise / Fall Time (Typ):	100ns, 100ns
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	30mA
Voltage - Supply:	3V ~ 15V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP

Please confirm the specifications of the products when ordering.
