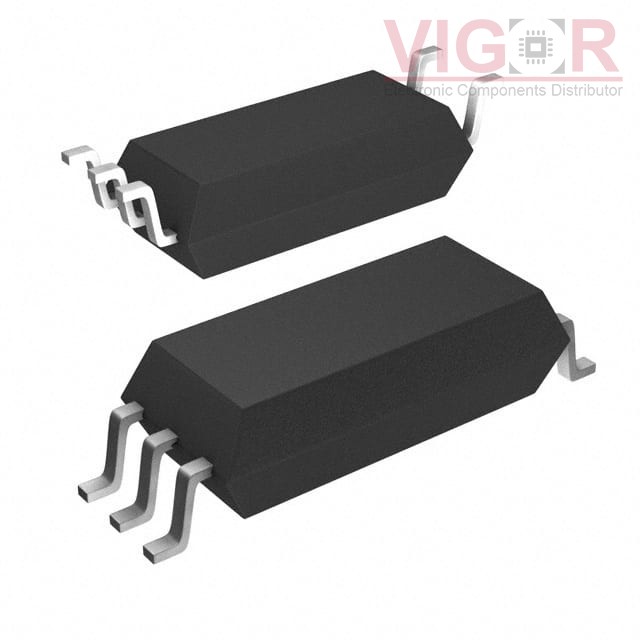

FOD8160

Part No :: FOD8160

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: OPTOISO 5KV OPEN COLLECTOR 5SOP

Catalog: Optoisolators - Logic Output

DataSheet: FOD8160 PDF

Availability: 0 pieces

Unit Price: ~~$3.22000~~

Current price of FOD8160 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FOD8160 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	50 mA
Data Rate:	10Mbps
Propagation Delay tpLH / tpHL (Max):	90ns, 80ns
Rise / Fall Time (Typ):	22ns, 9ns
Voltage - Forward (Vf) (Typ):	1.45V
Current - DC Forward (If) (Max):	25mA
Voltage - Supply:	3V ~ 5.5V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.362", 9.20mm Width), 5 Leads
Supplier Device Package:	5-SOP
