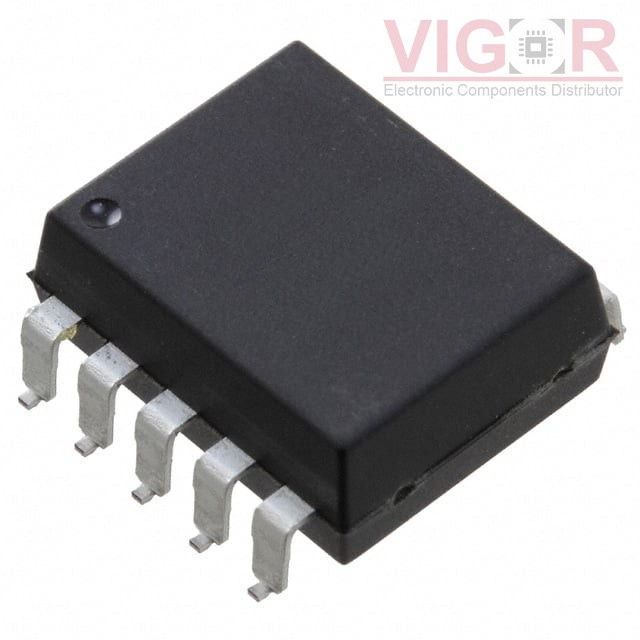

ACNV260E-500E

Part No :: ACNV260E-500E

Manufacturer: Broadcom

VIGOR # :: 4081897

Description: OPTOISO 5KV OPEN COLL 10DIP GW

Catalog: Optoisolators - Logic Output

DataSheet: ACNV260E-500E PDF

Country of origin: Confirming

Date code: TBC

ACNV260E-500E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	50 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	80ns, 80ns
Rise / Fall Time (Typ):	25ns, 10ns
Voltage - Forward (Vf) (Typ):	1.64V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	10-SMD, Gull Wing
Supplier Device Package:	10-DIP Gull Wing

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: Available on Request ?

Shipped from

HK warehouse

Expected Shipping Date

Awaiting confirmation

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.5396~~	~~$5.54~~
1000	~~$5.2260~~	~~$5 226.00~~

Current price of ACNV260E-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

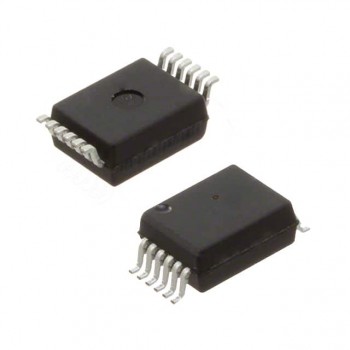

ACFL-6211U-060E
