TLPN137(F)

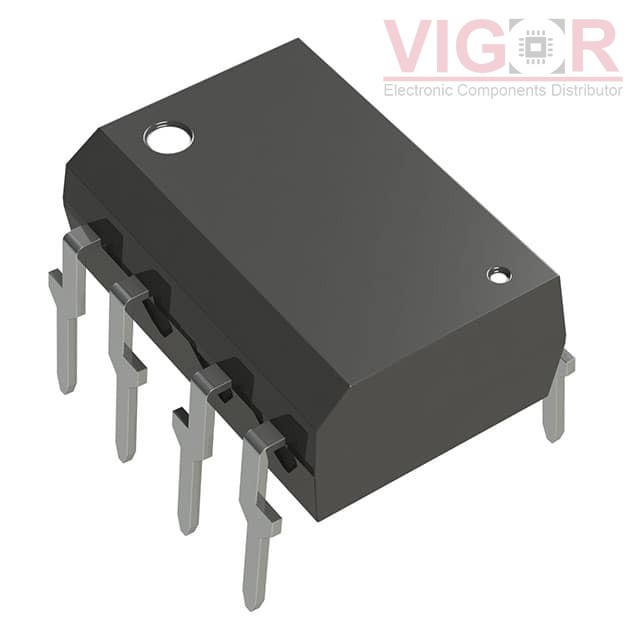

Part No :: TLPN137(F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4081965

Description: HIGH SPEED LOGIC OUTPUT COUPLER

Catalog: Optoisolators - Logic Output

DataSheet: TLPN137(F) PDF

Country of origin: -

Date code: -

TLPN137(F) Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	10kV/µs
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	50 mA
Data Rate:	10MBd
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	3ns, 12ns
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
