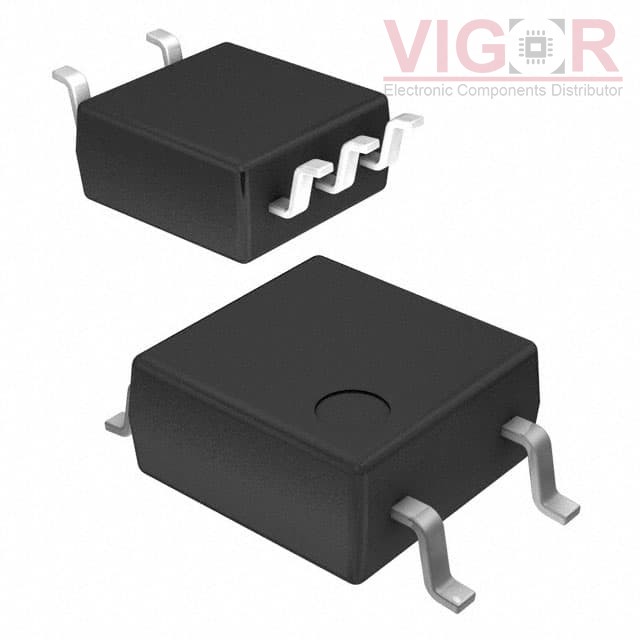

APS1551SX

Part No :: APS1551SX

Manufacturer: Panasonic

Description: OPTOISO 3.75KV PUSH PULL

Catalog: Optoisolators - Logic Output

DataSheet: APS1551SX PDF

Availability: 412 pieces

Unit Price: ~~$5.57000~~

Current price of APS1551SX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APS1551SX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	10 mA
Data Rate:	50Mbps
Propagation Delay tpLH / tpHL (Max):	30ns, 30ns
Rise / Fall Time (Typ):	4ns, 5ns
Voltage - Forward (Vf) (Typ):	1.6V
Current - DC Forward (If) (Max):	25mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:	6-SO, 5 Lead
