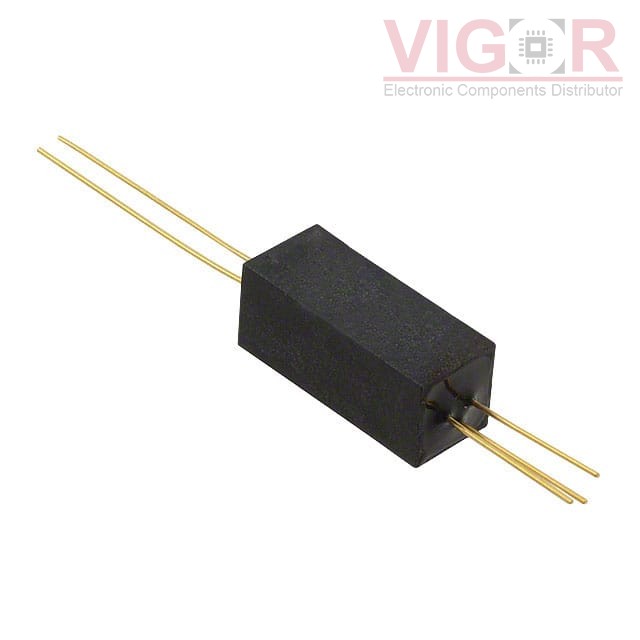

OPI120

Part No :: OPI120

Manufacturer: TT Electronics / Optek Technology

Description: OPTOISO 15KV TRANS W/BASE AXIAL

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: OPI120 PDF

Availability: 400 pieces

Unit Price: ~~$10.27000~~

Current price of OPI120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

OPI120 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	15000VDC
Current Transfer Ratio (Min):	20% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	2µs, 2µs
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	25V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.5V (Max)
Current - DC Forward (If) (Max):	150 mA
Vce Saturation (Max):	500mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	Axial - 5 leads
Supplier Device Package:	Axial
