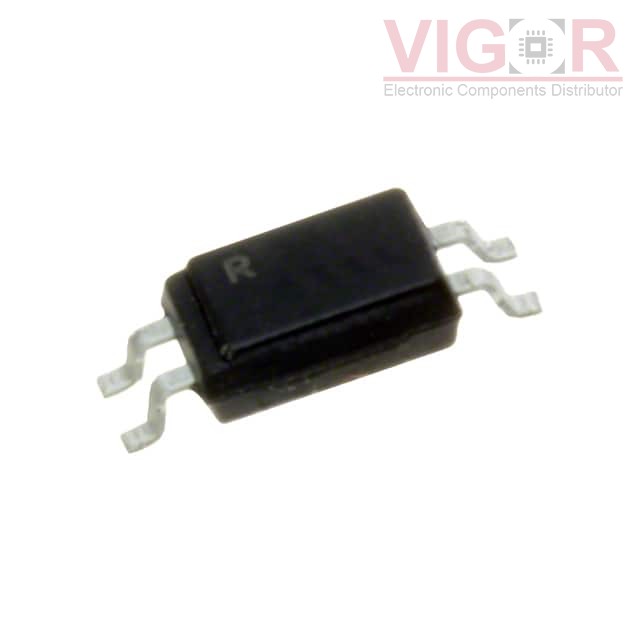

PS2801-1-F3-K-A

Part No :: PS2801-1-F3-K-A

Manufacturer: Renesas Electronics America

Description: OPTOISOLATOR 2.5KV TRANS 4-SSOP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: PS2801-1-F3-K-A PDF

Availability: 6283 pieces

Unit Price: ~~$0.90000~~

Current price of PS2801-1-F3-K-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PS2801-1-F3-K-A Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	2500Vrms
Current Transfer Ratio (Min):	300% @ 5mA
Current Transfer Ratio (Max):	600% @ 5mA
Turn On / Turn Off Time (Typ):	6µs, 5µs
Rise / Fall Time (Typ):	3µs, 5µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.1V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SOIC (0.173", 4.40mm Width)
Supplier Device Package:	4-SSOP
