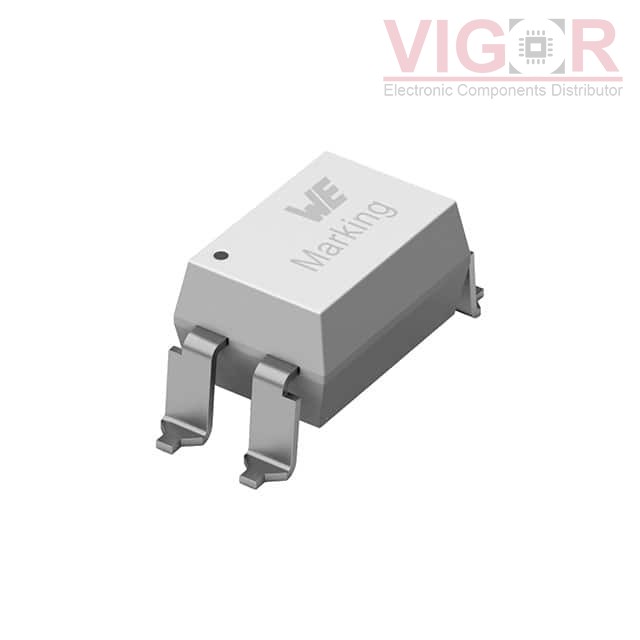

140816142400

Part No :: 140816142400

Manufacturer: Würth Elektronik Midcom

Description: WL-OCPT OPTOCOUPLER PHOTOTRANSIS

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: 140816142400 PDF

Availability: 1433 pieces

Unit Price: ~~$0.36000~~

Current price of 140816142400 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

140816142400 Specifications

Type	Description
Series:	WL-OCPT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	300% @ 5mA
Current Transfer Ratio (Max):	600% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	3µs, 4µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.24V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-DIP-S
