4N45-060E

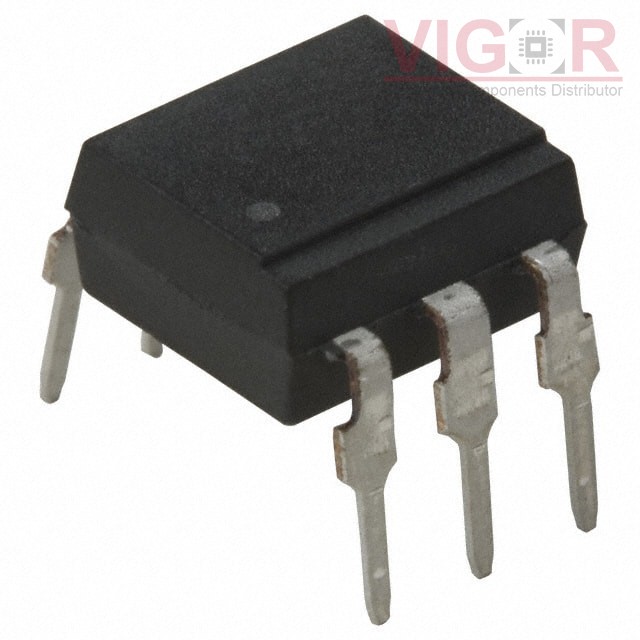

Image is for reference,
please contact us to get the real picture

Part No :: 4N45-060E

Manufacturer: Broadcom

Description: OPTOISO 3.75KV DARL W/BASE 6DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: 4N45-060E PDF

Availability: 0 pieces

Unit Price: ~~$1.14374~~

Current price of 4N45-060E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

4N45-060E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	200% @ 10mA
Current Transfer Ratio (Max):	1000% @ 10mA
Turn On / Turn Off Time (Typ):	5µs, 150µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington with Base
Voltage - Output (Max):	7V
Current - Output / Channel:	60mA
Voltage - Forward (Vf) (Typ):	1.4V
Current - DC Forward (If) (Max):	20 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP
