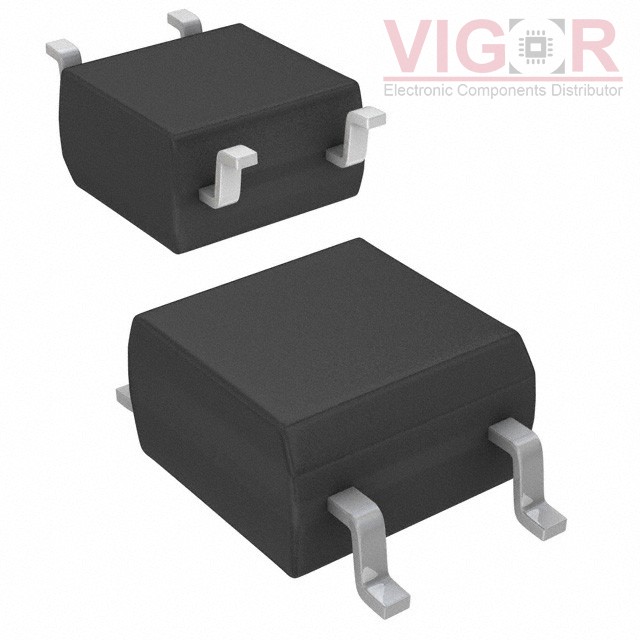

TLP185(GB-TPL,E)

Part No :: TLP185(GB-TPL,E)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4082939

Description: X36 PB-F PHOTOCOUPLER SMD T&R

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TLP185(GB-TPL,E) PDF

Country of origin: -

Date code: -

TLP185(GB-TPL,E) Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	100% @ 5mA
Current Transfer Ratio (Max):	400% @ 5mA
Turn On / Turn Off Time (Typ):	9µs, 9µs
Rise / Fall Time (Typ):	5µs, 9µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package:	6-SO, 4 Lead
