4N29SR2M

4N29SR2M

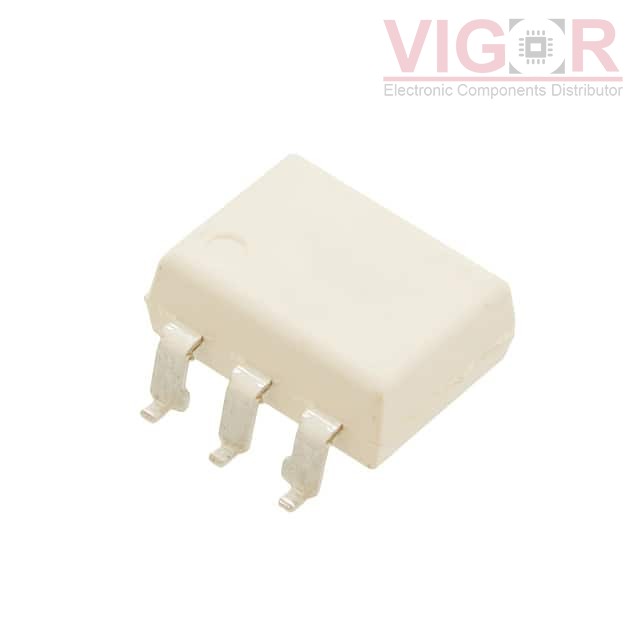

Image is for reference,
please contact us to get the real picture

Part No :

4N29SR2M

Manufacturer
VIGOR
Description
GENERAL PURPOSE PHOTODARLINGTON
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Sep 29 - Oct 03 2025
DataSheet
4N29SR2M PDF
Availability
14832 pieces
Unit Price
$0.36000

Current price of 4N29SR2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

4N29SR2M Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Channels:1
Voltage - Isolation:4170Vrms
Current Transfer Ratio (Min):100% @ 10mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):5µs, 40µs (Max)
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Darlington with Base
Voltage - Output (Max):30V
Current - Output / Channel:150mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):80 mA
Vce Saturation (Max):1V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
