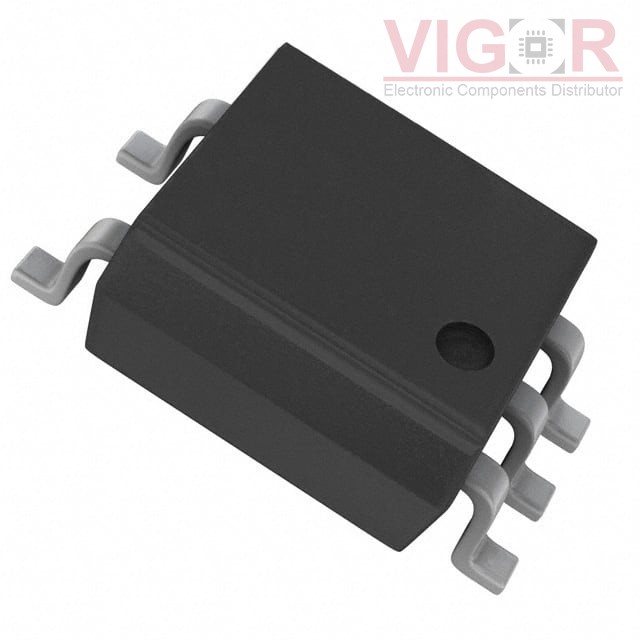

HCPL-M701

Part No :: HCPL-M701

Manufacturer: Broadcom

VIGOR # :: 4085795

Description: OPTOISO 3.75KV DARLINGTON 6SOIC

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HCPL-M701 PDF

Country of origin: -

Date code: -

HCPL-M701 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	500% @ 1.6mA
Current Transfer Ratio (Max):	3500% @ 500µA
Turn On / Turn Off Time (Typ):	500ns, 1µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	18V
Current - Output / Channel:	60mA
Voltage - Forward (Vf) (Typ):	1.4V
Current - DC Forward (If) (Max):	20 mA
Vce Saturation (Max):	-
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:	-
