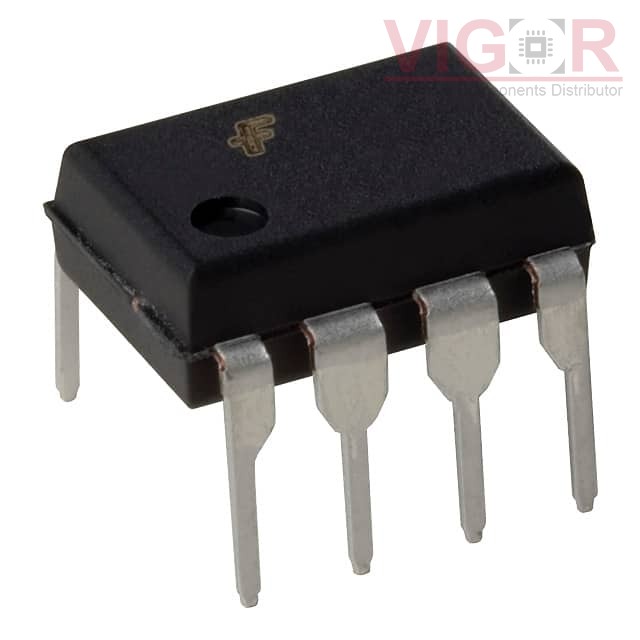

HCPL2530M

Part No :: HCPL2530M

Manufacturer: VIGOR

VIGOR # :: 4085979

Description: LOGIC IC OUTPUT OPTOCOUPLER, 2-E

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HCPL2530M PDF

Country of origin: -

Date code: -

HCPL2530M Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Number of Channels:	2
Voltage - Isolation:	2500Vrms
Current Transfer Ratio (Min):	7% @ 16mA
Current Transfer Ratio (Max):	50% @ 16mA
Turn On / Turn Off Time (Typ):	450ns, 500ns
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.45V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP
