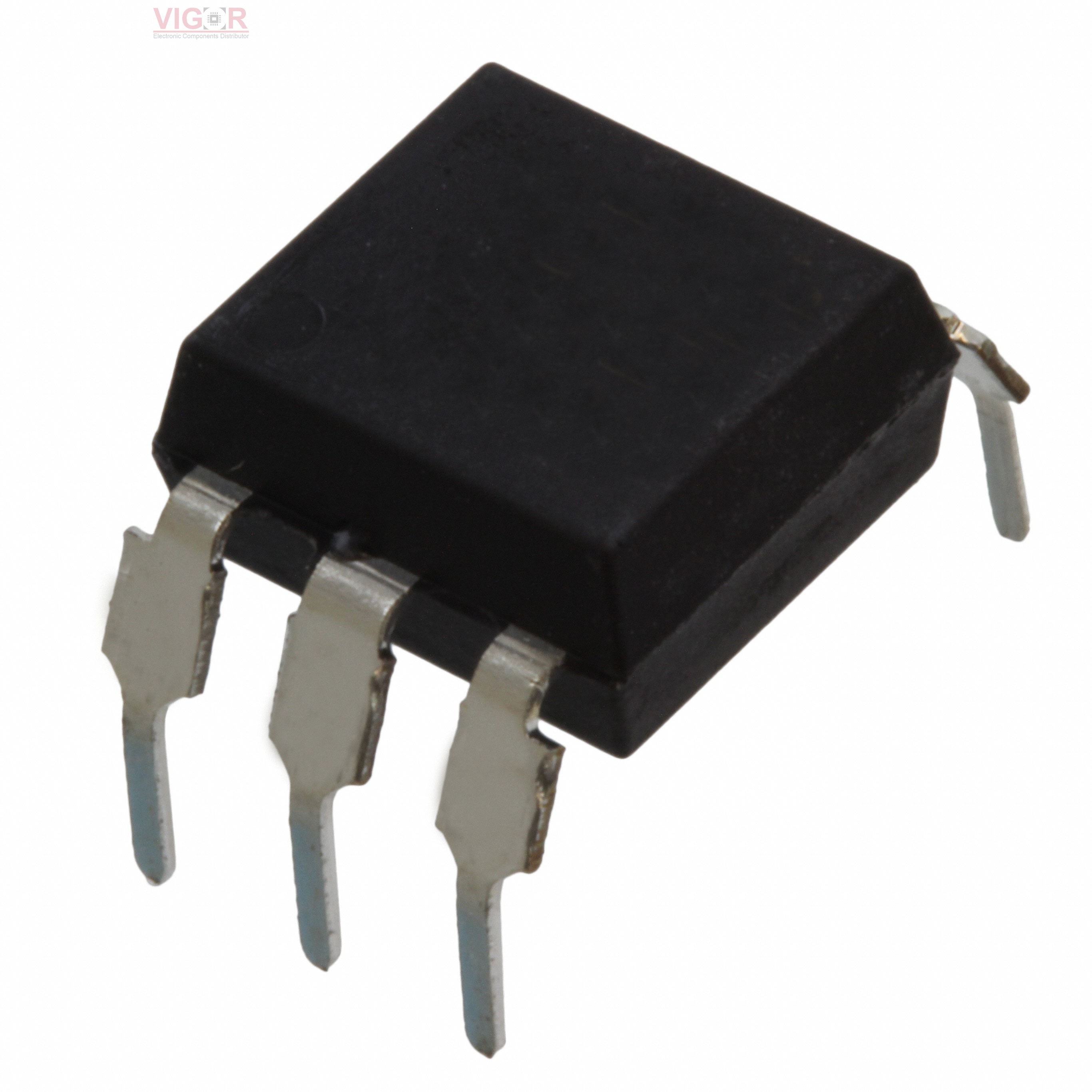

TCDT1102G

Part No :: TCDT1102G

Manufacturer: Vishay / Semiconductor - Opto Division

VIGOR # :: 4086378

Description: OPTOISOLATOR 5KV TRANS 6DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TCDT1102G PDF

Country of origin: -

Date code: -

TCDT1102G Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	63% @ 10mA
Current Transfer Ratio (Max):	125% @ 10mA
Turn On / Turn Off Time (Typ):	11µs, 7µs
Rise / Fall Time (Typ):	7µs, 6.7µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	32V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.400", 10.16mm)
Supplier Device Package:	6-DIP
