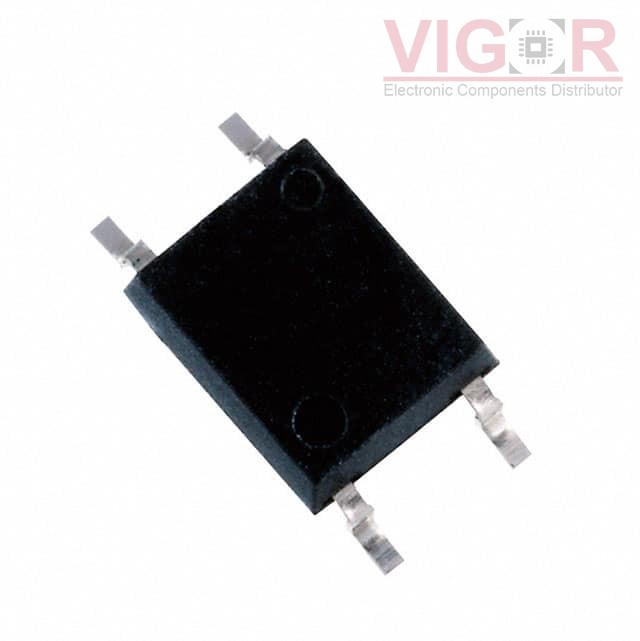

TLX9905(TPL,F

Part No :: TLX9905(TPL,F

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: PV COUPLER; 4-PIN SO6; AECQ; ROH

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TLX9905(TPL,F PDF

Availability: 549 pieces

Unit Price: ~~$3.37000~~

Current price of TLX9905(TPL,F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLX9905(TPL,F Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	-
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	300µs, 1ms
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Photovoltaic
Voltage - Output (Max):	7V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.65V
Current - DC Forward (If) (Max):	30 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package:	6-SO, 4 Lead
