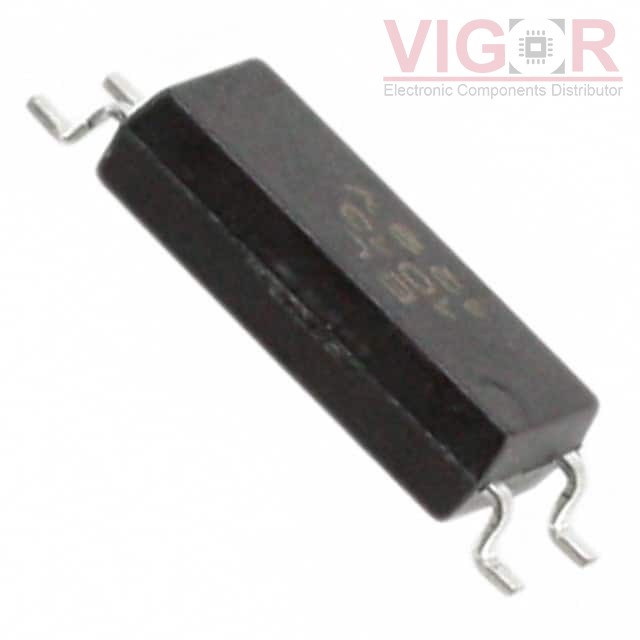

EL852(S)(TU)(D)-V

Part No :: EL852(S)(TU)(D)-V

Manufacturer: Everlight Electronics

Description: OPTOISO 5KV DARLINGTON 4-SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: EL852(S)(TU)(D)-V PDF

Availability: 0 pieces

Unit Price: ~~$0.17331~~

Current price of EL852(S)(TU)(D)-V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EL852(S)(TU)(D)-V Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	1000% @ 1mA
Current Transfer Ratio (Max):	15000% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	300µs, 100µs (Max)
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	350V
Current - Output / Channel:	150mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	1.2V
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD
