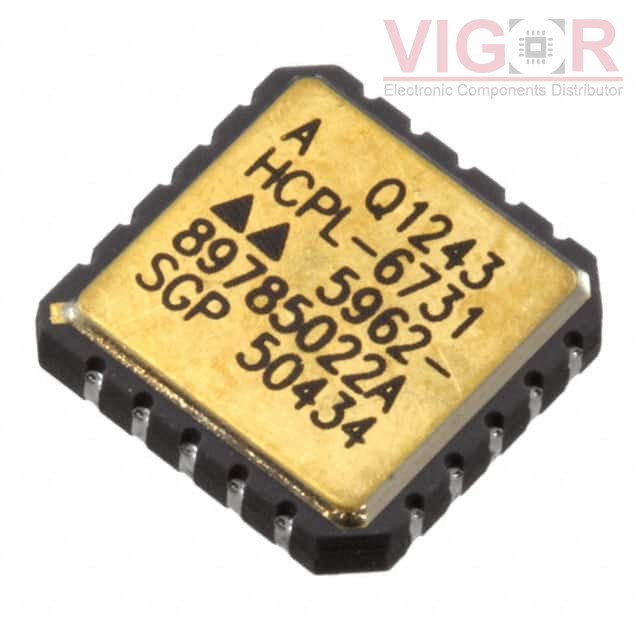

5962-89785022A

Part No :: 5962-89785022A

Manufacturer: Broadcom

Description: OPTOISO 1.5KV 2CH DARLNG 20-LCCC

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: 5962-89785022A PDF

Availability: 46 pieces

Unit Price: ~~$118.12000~~

Current price of 5962-89785022A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5962-89785022A Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	2
Voltage - Isolation:	1500VDC
Current Transfer Ratio (Min):	200% @ 5mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	2µs, 8µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	20V
Current - Output / Channel:	40mA
Voltage - Forward (Vf) (Typ):	1.4V
Current - DC Forward (If) (Max):	10 mA
Vce Saturation (Max):	110mV
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	20-CLCC
Supplier Device Package:	20-LCC (8.89x8.89)
