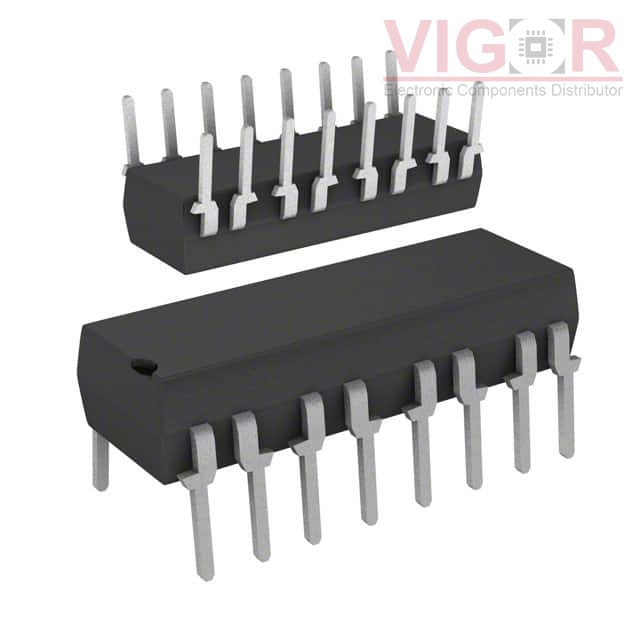

ILQ2-X006

Part No :: ILQ2-X006

Manufacturer: Vishay / Semiconductor - Opto Division

VIGOR # :: 4979726

Description: OPTOISO 5.3KV 4CH TRANS 16DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: ILQ2-X006 PDF

Country of origin: -

Date code: -

ILQ2-X006 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	4
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	100% @ 10mA
Current Transfer Ratio (Max):	500% @ 10mA
Turn On / Turn Off Time (Typ):	1.2µs, 2.3µs
Rise / Fall Time (Typ):	2.6µs, 2.2µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	16-DIP (0.300", 7.62mm)
Supplier Device Package:	16-DIP
