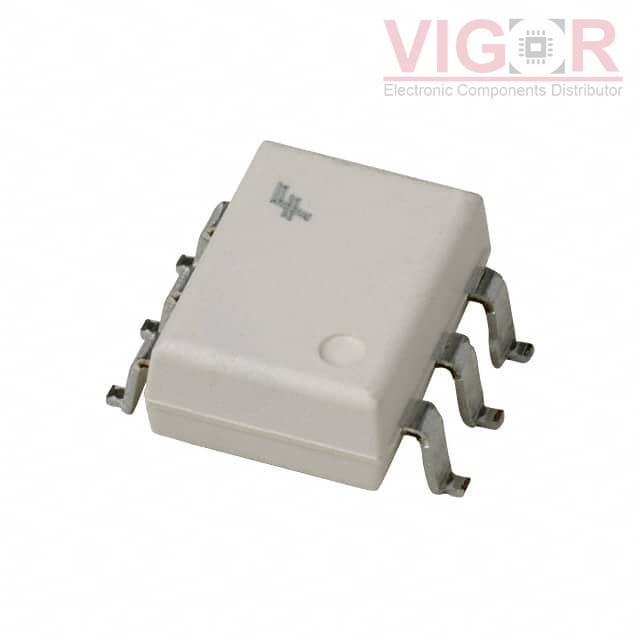

TIL117SM

Part No :: TIL117SM

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4979803

Description: OPTOISO 7.5KV TRANS W/BASE 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TIL117SM PDF

Country of origin: -

Date code: -

TIL117SM Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	7500Vpk
Current Transfer Ratio (Min):	50% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	10µs, 10µs (Max)
Rise / Fall Time (Typ):	2µs, 2µs
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	30V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
