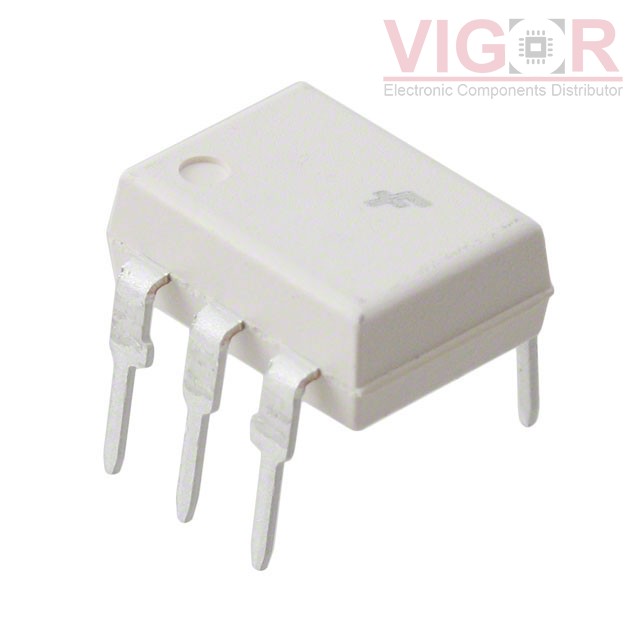

H11AG1

Part No :: H11AG1

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4980110

Description: OPTOISO 5.3KV TRANS W/BASE 6DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: H11AG1 PDF

Country of origin: -

Date code: -

H11AG1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	100% @ 1mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	5µs, 5µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	30V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.5V (Max)
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP
