TLP624LF1F

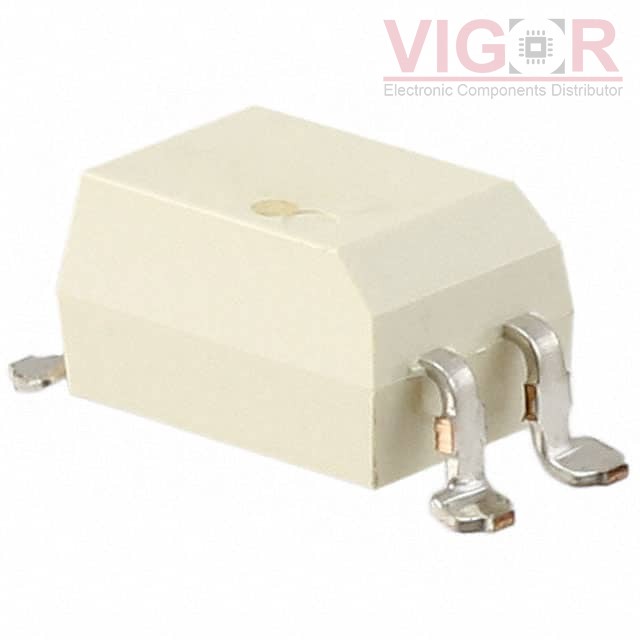

Image is for reference,
please contact us to get the real picture

Part No :: TLP624LF1F

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOISOLATR 5KV TRANSISTOR 4-SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: TLP624LF1F PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TLP624LF1F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLP624LF1F Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	100% @ 1mA
Current Transfer Ratio (Max):	1200% @ 1mA
Turn On / Turn Off Time (Typ):	10µs, 8µs
Rise / Fall Time (Typ):	8µs, 8µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	55V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.15V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD

Please confirm the specifications of the products when ordering.
