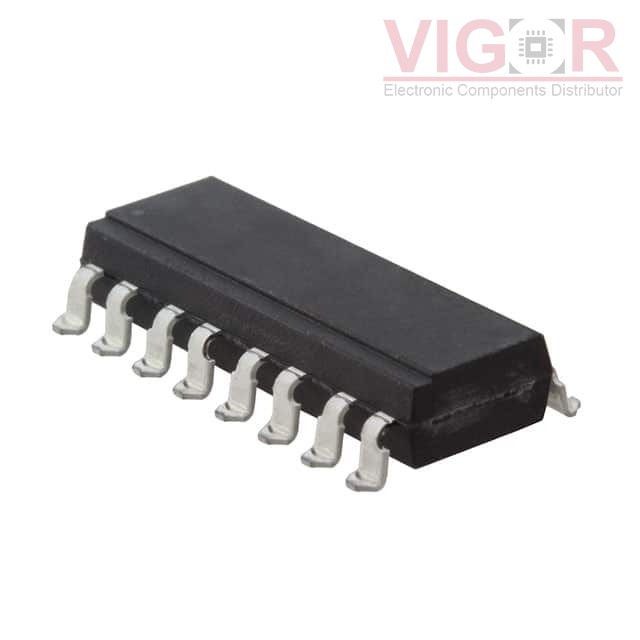

PS2503L-4-A

Part No :: PS2503L-4-A

Manufacturer: CEL (California Eastern Laboratories)

VIGOR # :: 4980626

Description: OPTOISOLTR 5KV 4CH TRANS 16-SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: PS2503L-4-A PDF

Country of origin: -

Date code: -

PS2503L-4-A Specifications

Type	Description
Series:	NEPOC
Package:	Tube
Part Status:	Obsolete
Number of Channels:	4
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	100% @ 1mA
Current Transfer Ratio (Max):	400% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	20µs, 30µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	40V
Current - Output / Channel:	30mA
Voltage - Forward (Vf) (Typ):	1.1V
Current - DC Forward (If) (Max):	80 mA
Vce Saturation (Max):	250mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	16-SMD, Gull Wing
Supplier Device Package:	16-SMD
