LTV-200

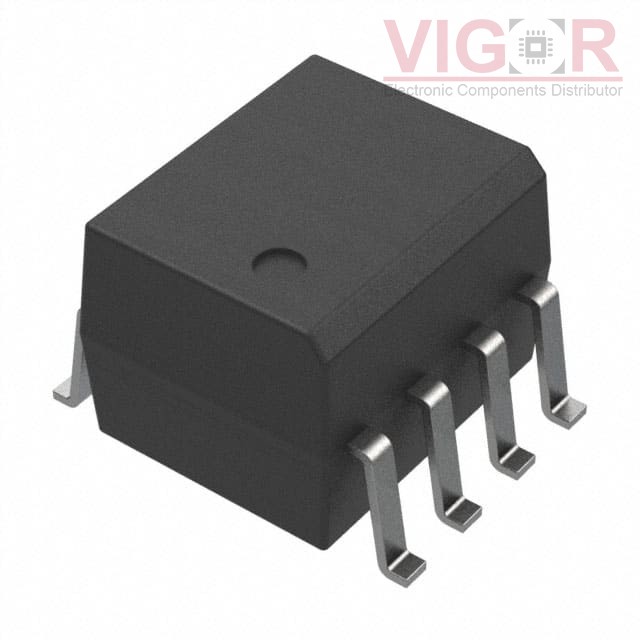

Image is for reference,
please contact us to get the real picture

Part No :: LTV-200

Manufacturer: Lite-On, Inc.

Description: OPTOISO 3.75KV 2CH TRANS 8-SOP

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: LTV-200 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of LTV-200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LTV-200 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	2
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	20% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	5µs, 4µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	30 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOP

Please confirm the specifications of the products when ordering.
