CNY17-1S-TA

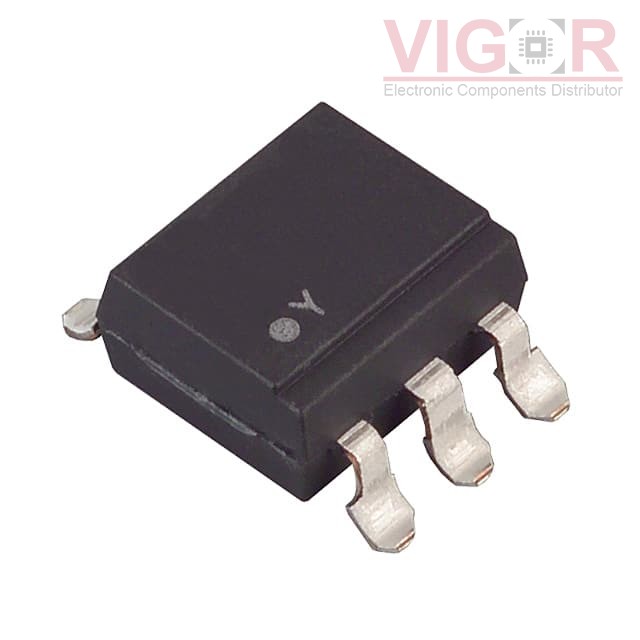

Image is for reference,
please contact us to get the real picture

Part No :: CNY17-1S-TA

Manufacturer: Lite-On, Inc.

Description: OPTOISO 5KV TRANS W/BASE 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: CNY17-1S-TA PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CNY17-1S-TA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CNY17-1S-TA Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	40% @ 10mA
Current Transfer Ratio (Max):	80% @ 10mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	5µs, 5µs
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	70V
Current - Output / Channel:	150mA
Voltage - Forward (Vf) (Typ):	1.45V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD

Please confirm the specifications of the products when ordering.
