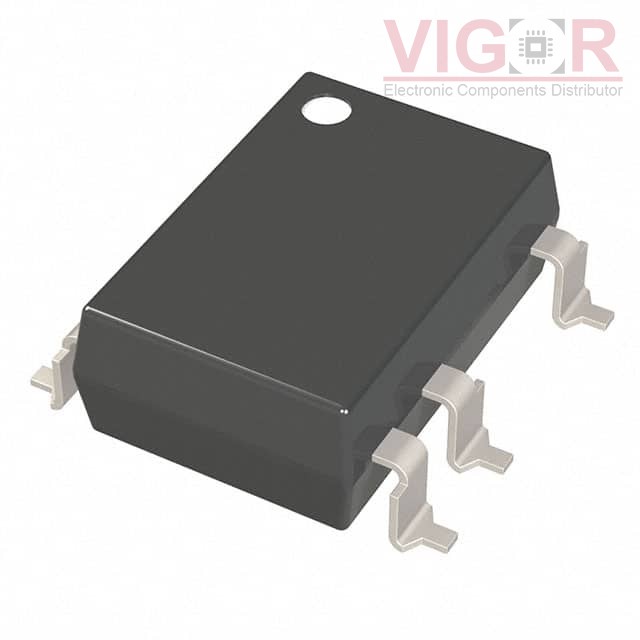

QTT2223ST1

Image is for reference,
please contact us to get the real picture

Part No :: QTT2223ST1

Manufacturer: QT Brightek

Description: 7 PIN RANDOM-PHASE HIGH POWER TR

Catalog: Optoisolators - Triac, SCR Output

DataSheet: QTT2223ST1 PDF

Availability: 1997 pieces

Unit Price: ~~$3.31000~~

Current price of QTT2223ST1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QTT2223ST1 Specifications

Type	Description
Series:	QTX223
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Type:	Triac, Power
Zero Crossing Circuit:	No
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Voltage - Off State:	600 V
Static dV/dt (Min):	200V/µs
Current - LED Trigger (Ift) (Max):	10mA
Current - On State (It (RMS)) (Max):	900 mA
Current - Hold (Ih):	25mA
Turn On Time:	-
Voltage - Forward (Vf) (Typ):	1.3V (Max)
Current - DC Forward (If) (Max):	50 mA
Operating Temperature:	-55°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD (7 Leads), Gull Wing
Supplier Device Package:	7-SMD
Approval Agency:	UL, VDE
