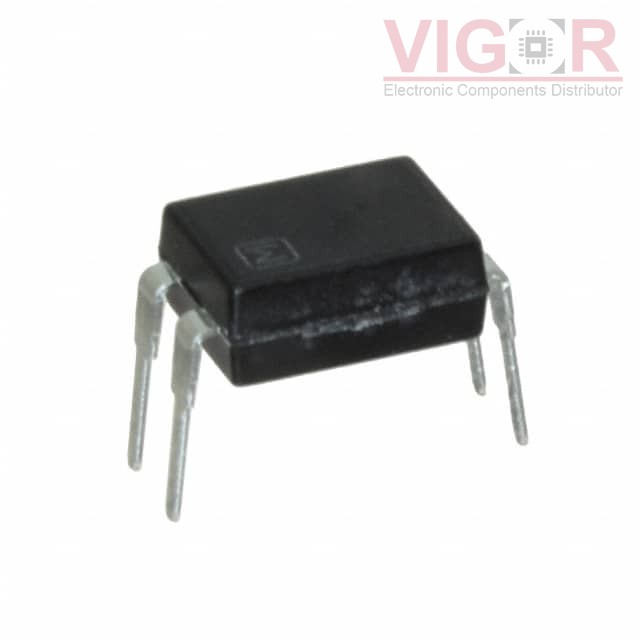

APT1231

Part No :: APT1231

Manufacturer: Panasonic

VIGOR # :: 4087477

Description: PHOTOTRIAC COUPLER 600V 4DIP

Catalog: Optoisolators - Triac, SCR Output

DataSheet: APT1231 PDF

Country of origin: -

Date code: -

APT1231 Specifications

Type	Description
Series:	APT
Package:	Tube
Part Status:	Active
Output Type:	Triac
Zero Crossing Circuit:	Yes
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Voltage - Off State:	600 V
Static dV/dt (Min):	500V/µs
Current - LED Trigger (Ift) (Max):	10mA
Current - On State (It (RMS)) (Max):	50 mA
Current - Hold (Ih):	3.5mA
Turn On Time:	100µs (Max)
Voltage - Forward (Vf) (Typ):	1.21V
Current - DC Forward (If) (Max):	50 mA
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.300", 7.62mm)
Supplier Device Package:	4-DIP
Approval Agency:	cUR, VDE

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 894

Shipped from

HK warehouse

Expected Shipping Date

Apr 01 - Apr 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.8700~~	~~$1.87~~
10	~~$1.6517~~	~~$16.52~~
25	~~$1.2256~~	~~$30.64~~
100	~~$1.0656~~	~~$106.56~~
250	~~$0.9590~~	~~$239.76~~
500	~~$0.8525~~	~~$426.23~~
1000	~~$0.7326~~	~~$732.59~~
3000	~~$0.6926~~	~~$2 077.89~~
5000	~~$0.6660~~	~~$3 329.95~~

Current price of APT1231 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

EL3012S(TB)

OPTOISOLATOR 5KV TRIAC 6SMD

MOC3022SM

OPTOISOLATOR 4.17KV TRIAC 6SMD

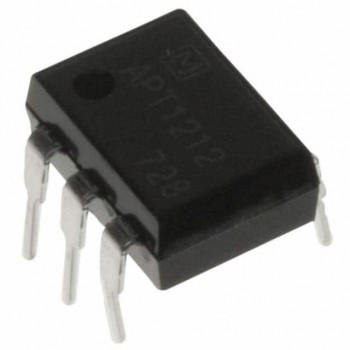

APT1222WAW
