B66363G2500X187

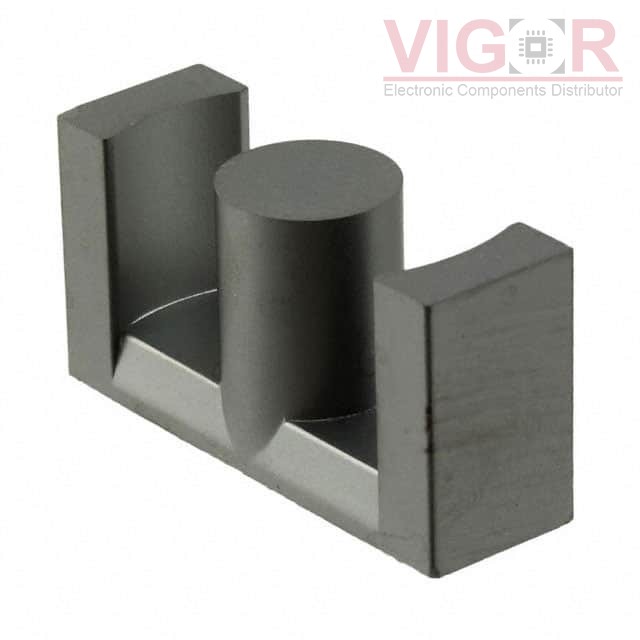

Image is for reference,
please contact us to get the real picture

Part No :: B66363G2500X187

Manufacturer: TDK EPCOS

Description: FERRITE CORE

Catalog: Ferrite Cores

DataSheet: B66363G2500X187 PDF

Availability: 0 pieces

Unit Price: ~~$1.26617~~

Current price of B66363G2500X187 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B66363G2500X187 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Core Type:	ETD
Supplier Device Package:	ETD 39 x 20 x 13
Material:	N87
Diameter:	-
Inductance Factor (Al):	-
Tolerance:	-
Gap:	-
Effective Permeability (µe):	-
Initial Permeability (µi):	2200
Core Factor (ΣI/A) mm^-1:	0.74
Effective Length (le) mm:	92.2
Effective Area (Ae) mm²:	125
Minimum Core Cross Section (Amin) mm²:	123
Effective Magnetic Volume (Ve) mm³:	11500
Finish:	Uncoated
Height:	20.00mm
Length:	38.90mm
Width:	12.80mm

Please confirm the specifications of the products when ordering.
