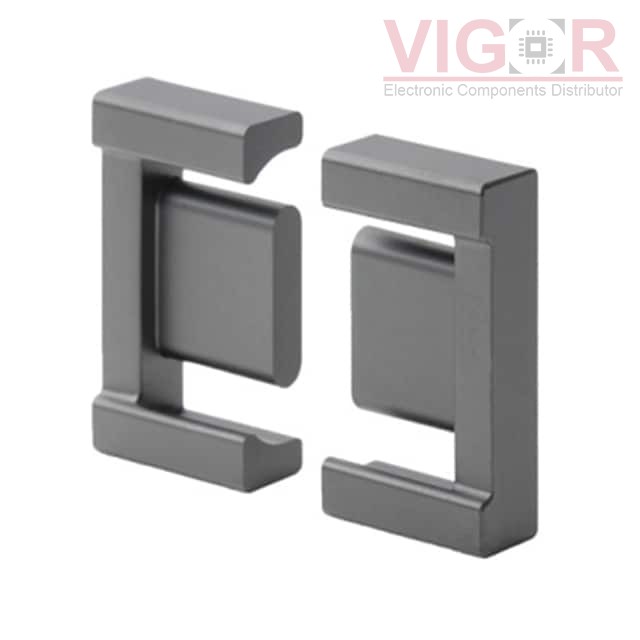

PC47EPC13-Z

Part No :: PC47EPC13-Z

Manufacturer: TDK Corporation

VIGOR # :: 4178990

Description: FERRITE CORE EPC 870NH 2PC SET

Catalog: Ferrite Cores

DataSheet: PC47EPC13-Z PDF

Country of origin: -

Date code: -

PC47EPC13-Z Specifications

Type	Description
Series:	EPC
Package:	Tray
Part Status:	Active
Core Type:	EPC
Supplier Device Package:	EPC 13
Material:	PC47
Diameter:	-
Inductance Factor (Al):	870 nH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	2.45
Effective Length (le) mm:	30.6
Effective Area (Ae) mm²:	12.5
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	382
Finish:	Uncoated
Height:	6.60mm
Length:	13.25mm
Width:	4.60mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 129

Shipped from

HK warehouse

Expected Shipping Date

Apr 07 - Apr 11 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.7600~~	~~$0.76~~
10	~~$0.6440~~	~~$6.44~~
25	~~$0.5520~~	~~$13.80~~
50	~~$0.4946~~	~~$24.73~~
100	~~$0.4370~~	~~$43.70~~
250	~~$0.3910~~	~~$97.75~~
900	~~$0.3680~~	~~$331.20~~
1800	~~$0.3105~~	~~$558.90~~
5400	~~$0.2875~~	~~$1 552.50~~
