B65803A0016A001

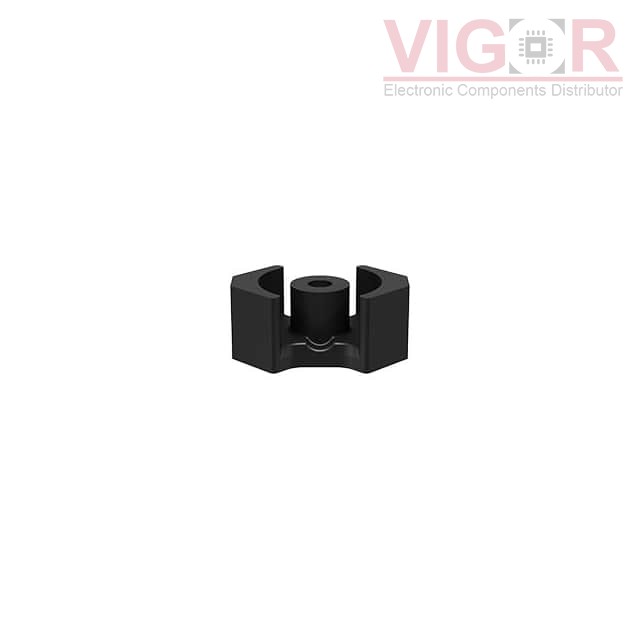

Image is for reference,
please contact us to get the real picture

Part No :: B65803A0016A001

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 16NH K1 2PCS

Catalog: Ferrite Cores

DataSheet: B65803A0016A001 PDF

Availability: 0 pieces

Unit Price: ~~$2.11350~~

Current price of B65803A0016A001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65803A0016A001 Specifications

Type	Description
Series:	B65803
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 4
Material:	K1
Diameter:	-
Inductance Factor (Al):	16 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	24.2
Initial Permeability (µi):	80
Core Factor (ΣI/A) mm^-1:	1.9
Effective Length (le) mm:	21
Effective Area (Ae) mm²:	11
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	231
Finish:	Uncoated
Height:	5.25mm
Length:	11.00mm
Width:	4.60mm

Please confirm the specifications of the products when ordering.
