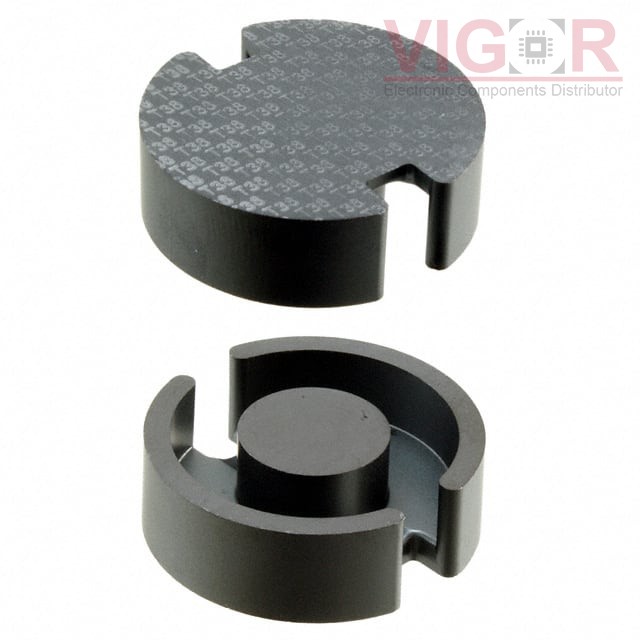

B65701W0000Y038

Part No :: B65701W0000Y038

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 28UH T38 2PCS

Catalog: Ferrite Cores

DataSheet: B65701W0000Y038 PDF

Availability: 432 pieces

Current price of B65701W0000Y038 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65701W0000Y038 Specifications

Type	Description
Series:	B65701
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 30 x 19
Material:	T38
Diameter:	30.50mm
Inductance Factor (Al):	28 µH
Tolerance:	-30%, +40%
Gap:	Ungapped
Effective Permeability (µe):	7070
Initial Permeability (µi):	10000
Core Factor (ΣI/A) mm^-1:	0.32
Effective Length (le) mm:	46
Effective Area (Ae) mm²:	145
Minimum Core Cross Section (Amin) mm²:	117
Effective Magnetic Volume (Ve) mm³:	6670
Finish:	Uncoated
Height:	9.50mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
