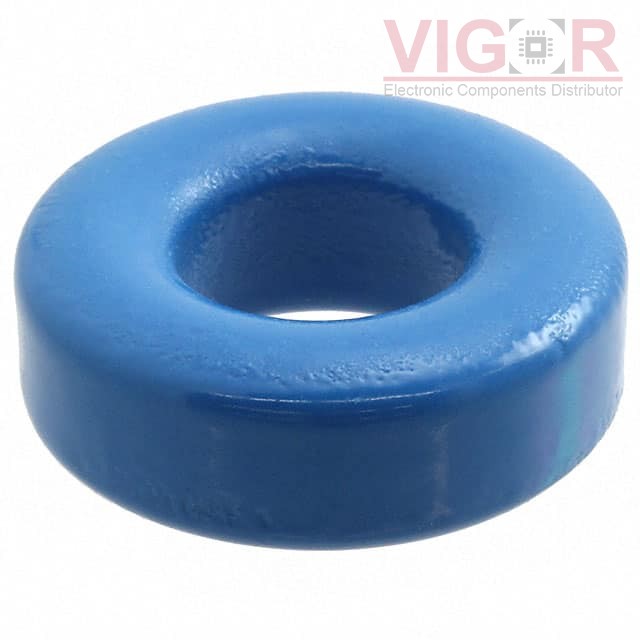

B64290L0632X027

Part No :: B64290L0632X027

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 1.94UH N27

Catalog: Ferrite Cores

DataSheet: B64290L0632X027 PDF

Availability: 1503 pieces

Current price of B64290L0632X027 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B64290L0632X027 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	-
Material:	N27
Diameter:	21.20mm
Inductance Factor (Al):	1.94 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	2000
Core Factor (ΣI/A) mm^-1:	1.3
Effective Length (le) mm:	43.55
Effective Area (Ae) mm²:	33.63
Minimum Core Cross Section (Amin) mm²:	33.63
Effective Magnetic Volume (Ve) mm³:	1465
Finish:	Epoxy
Height:	8.10mm
Length:	-
Width:	-
