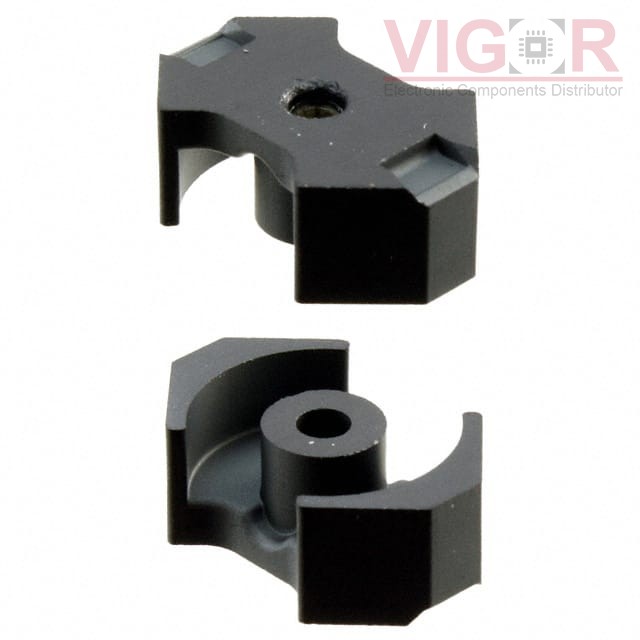

B65805N0025A001

Part No :: B65805N0025A001

Manufacturer: TDK EPCOS

Description: FERRITE CORE RM 25NH K1 2PCS

Catalog: Ferrite Cores

DataSheet: B65805N0025A001 PDF

Availability: 0 pieces

Current price of B65805N0025A001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65805N0025A001 Specifications

Type	Description
Series:	B65805
Package:	Box
Part Status:	Active
Core Type:	RM
Supplier Device Package:	RM 5
Material:	K1
Diameter:	-
Inductance Factor (Al):	25 nH
Tolerance:	±3%
Gap:	Gapped
Effective Permeability (µe):	19.9
Initial Permeability (µi):	80
Core Factor (ΣI/A) mm^-1:	1
Effective Length (le) mm:	20.8
Effective Area (Ae) mm²:	20.8
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	433
Finish:	Uncoated
Height:	5.25mm
Length:	14.60mm
Width:	6.80mm

Please confirm the specifications of the products when ordering.
