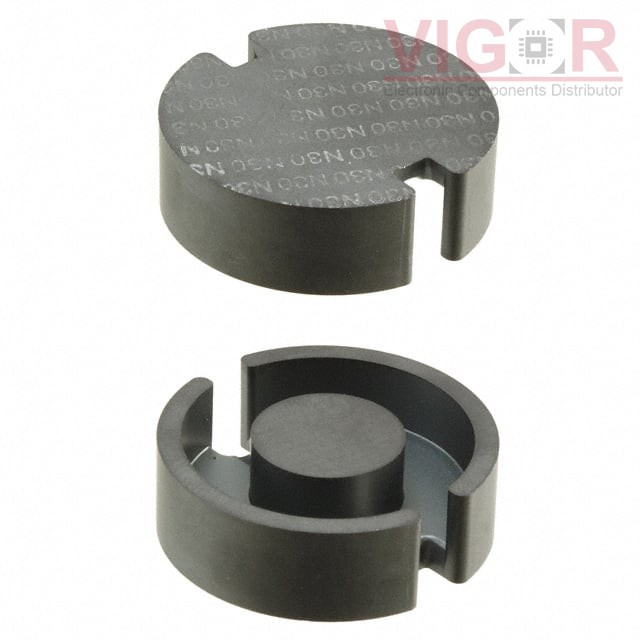

B65611W0000R030

Part No :: B65611W0000R030

Manufacturer: TDK EPCOS

Description: FERRITE CORE P 15.2UH N30 2PCS

Catalog: Ferrite Cores

DataSheet: B65611W0000R030 PDF

Availability: 115 pieces

Current price of B65611W0000R030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B65611W0000R030 Specifications

Type	Description
Series:	B65611
Package:	Box
Part Status:	Active
Core Type:	P (Pot Core)
Supplier Device Package:	P 36 x 22
Material:	N30
Diameter:	36.00mm
Inductance Factor (Al):	15.2 µH
Tolerance:	-20%, +30%
Gap:	Ungapped
Effective Permeability (µe):	3040
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	0.25
Effective Length (le) mm:	53.5
Effective Area (Ae) mm²:	213
Minimum Core Cross Section (Amin) mm²:	173
Effective Magnetic Volume (Ve) mm³:	11400
Finish:	Uncoated
Height:	11.00mm
Length:	-
Width:	-
