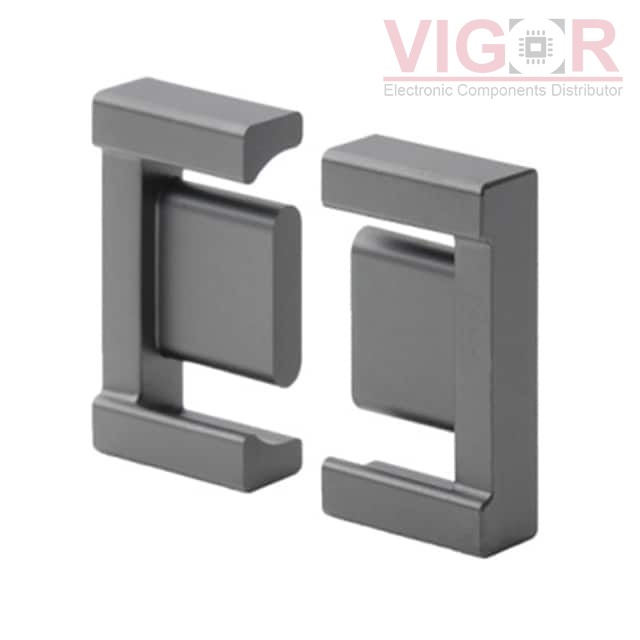

PC47EPC19-Z

Part No :: PC47EPC19-Z

Manufacturer: TDK Corporation

Description: FERRITE CORE EPC 940NH 2PC SET

Catalog: Ferrite Cores

DataSheet: PC47EPC19-Z PDF

Availability: 554 pieces

Current price of PC47EPC19-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC47EPC19-Z Specifications

Type	Description
Series:	EPC
Package:	Tray
Part Status:	Active
Core Type:	EPC
Supplier Device Package:	EPC 19
Material:	PC47
Diameter:	-
Inductance Factor (Al):	940 nH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	-
Core Factor (ΣI/A) mm^-1:	2.03
Effective Length (le) mm:	46.1
Effective Area (Ae) mm²:	22.7
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	1050
Finish:	Uncoated
Height:	9.75mm
Length:	19.10mm
Width:	6.00mm
